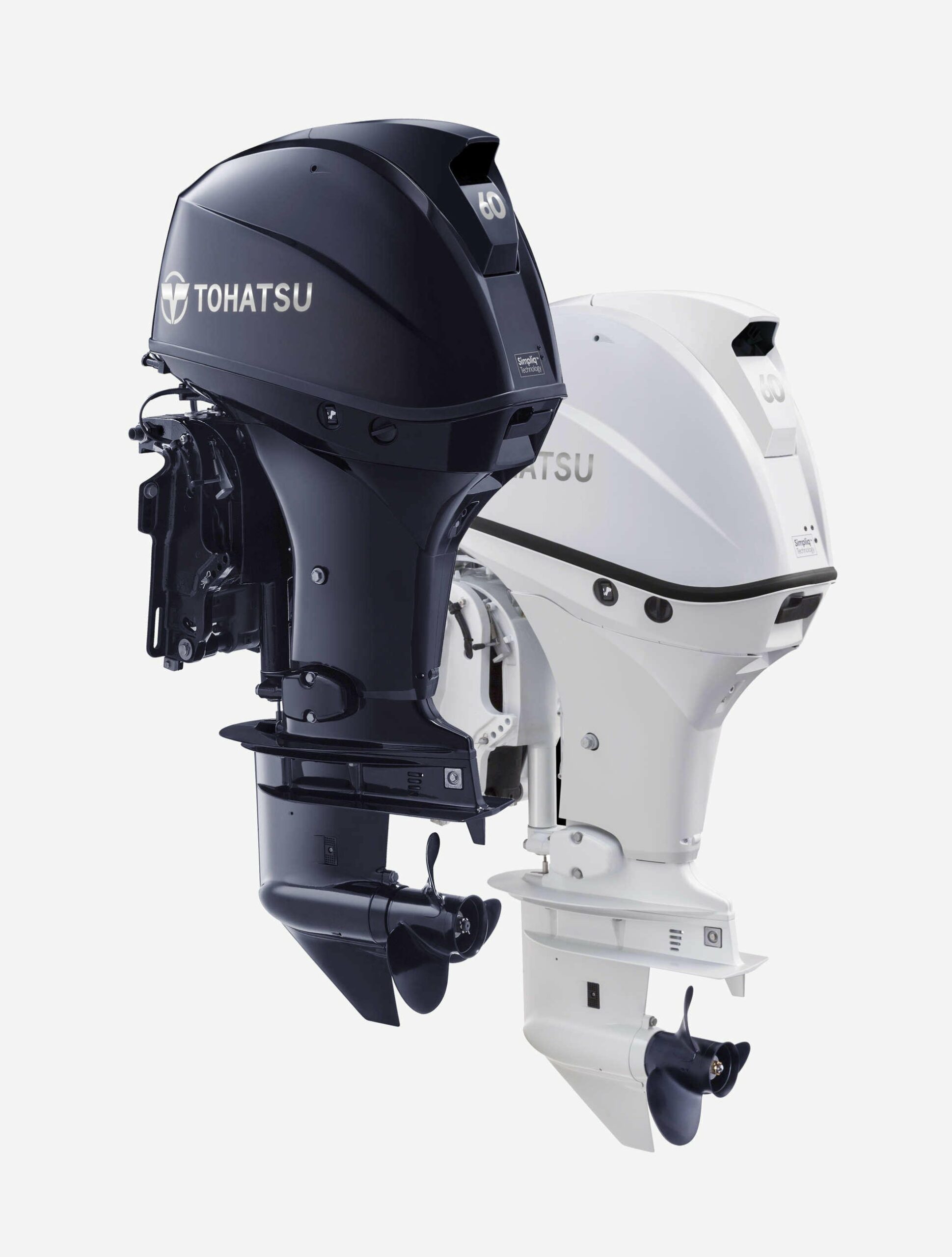

Tohatsu 60 hp 4-Stroke outboards

Model : MFS60AWETL
Shaft Length: 20
Cylinders: 3
Electric Start: s
Tiller Handle : see note
Remote Control: see note
12V Charging System: S
Power Trim & Tilt: S
Remote Fuel Tank : s
Propeller: S

S:Starndard
Note : Control type can be chosen from multi function tiller and remote control.
Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.

Tohatsu 60 hp 4-Stroke Benefits
Sleek design with monochrome tilt handle
SOHC with unique 9-Valve Design
Outstanding fuel economy
Lightest weight in its class, just 98.5 kg.
Available in long (20”) shaft lengths
High Performance and Easy Operation
Electronic Fuel Injection
Digital CD ignition system for quicker starts
High output 21 amp alternator
New and improved gear case with lower gear ratio for increased low end torque
Adjustable steering friction and trim tab for reducing steering effort
Power trim & tilt
Fundamentals for User Convenience and Reliability
Through the prop exhaust for a quieter ride
Built-in freshwater flushing system for easy routine flushing
Variable idling speed control from 650 to 950 rpm’s
A camshaft-driven trochoid oil pump ensures long-term durability of critical engine components
Stainless steel water pump housing liner for outstanding durability
Warning & Protection
Low oil pressure warning (visual and audible)
Overheat warning (visual and audible)
Battery voltage warning (visual only)
Start-in-gear protection for safer engine starting
Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
Over-rev. limiter

SPECIFICATIONS
Engine 3 Cylinder
Output 60 ps (44.1 kw)
Displacement 866 cc (52.9 cu.in.)
Bore x Stroke 70 x 75 mm (2.76 x 2.95 in)
Starting Electric
Control Type Remote Control or Tiller Handle
Gear Shift Forward – Neutral – Reverse
Gear Ratio 2.08:1
Transom Height 20″
Fuel Unleaded Gasoline (87 Octane) or higher
Oil Type NMMA Certified FC-W® 4-stroke oil**
Weight* 98.5 kg (217 lbs.)
Alternator Output 12V, 252W, 21A
Max. RPM Range 5,000 – 6,000
Digital ECU Controlled Ignition System Standard
Electronic Fuel Injection Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Overheat Buzzer Standard
Power Trim and Tilt Standard
Oil Pressure Warning Standard

* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
